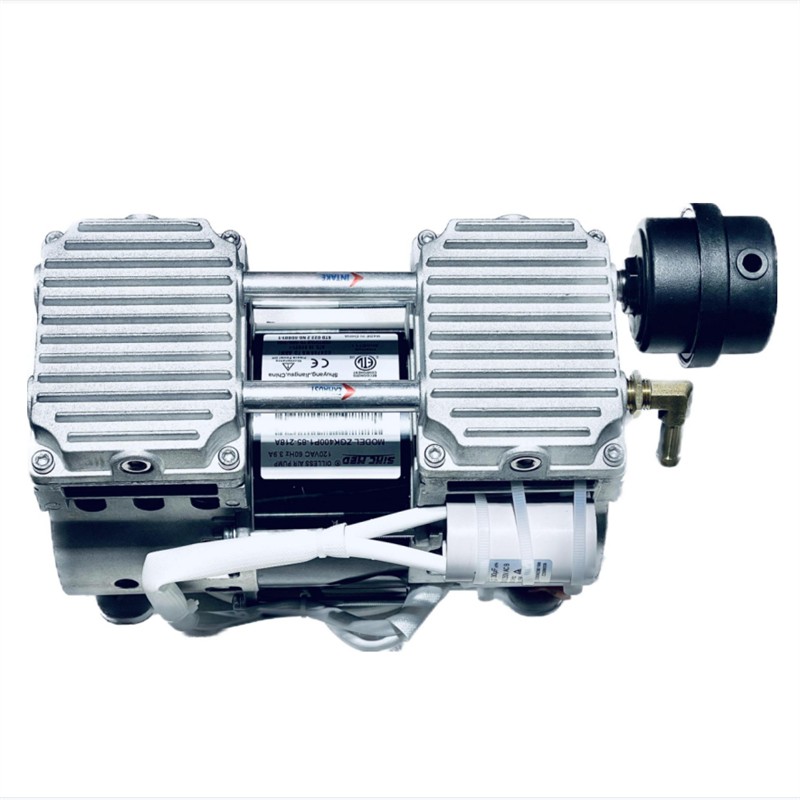

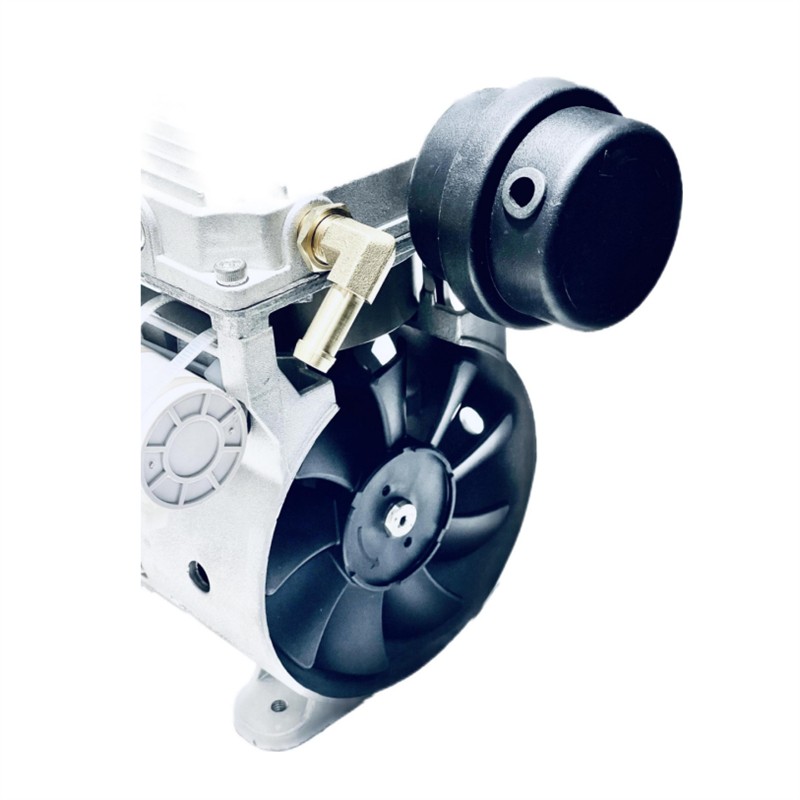

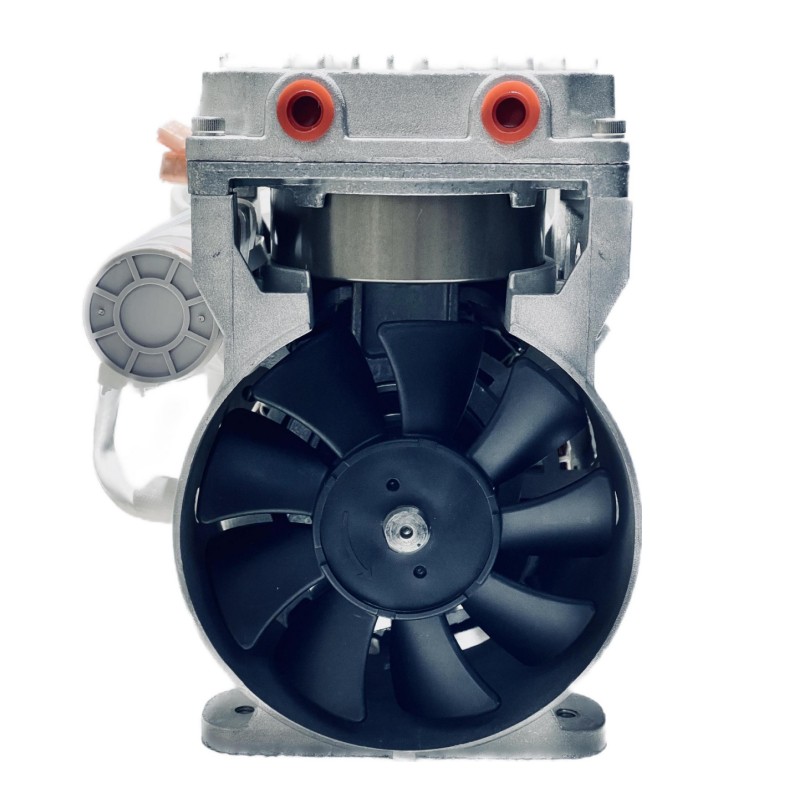

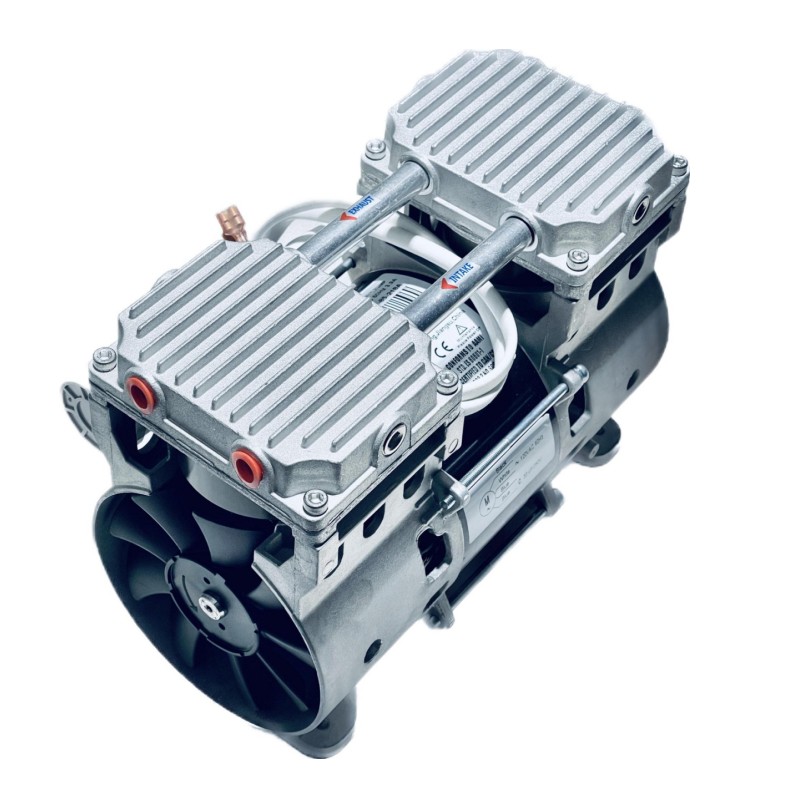

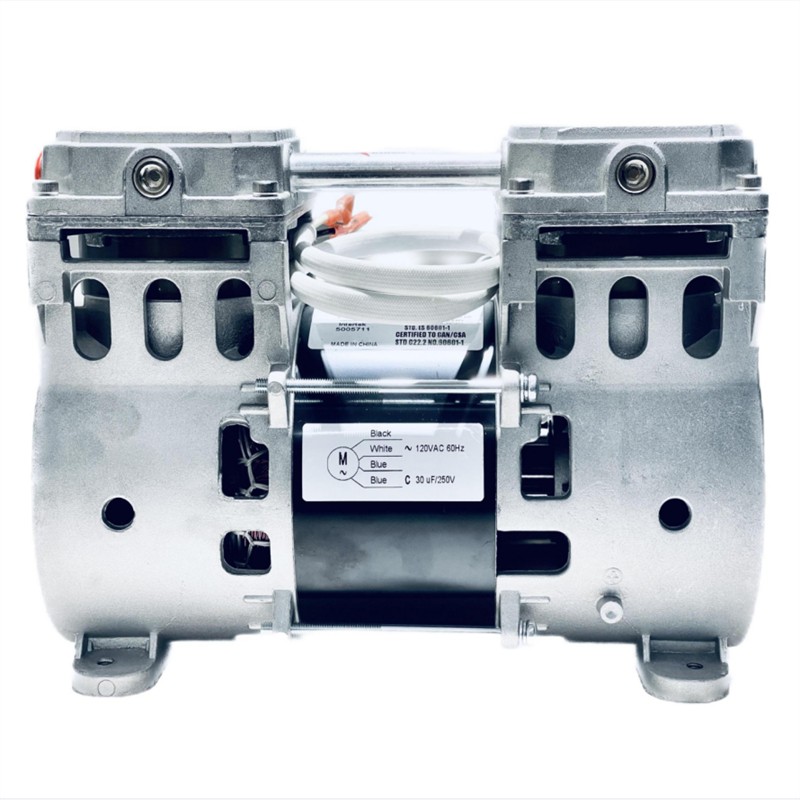

120L/MIN rocking piston vacuum pump for food processing
Power: 480W
Air flow: 120L/MIN
Vacuum: -90Kpa
Noise: <57dB
Safety certification: ETL
Air flow: 120L/MIN
Vacuum: -90Kpa
Noise: <57dB
Safety certification: ETL
0
| NOTE: All test values are nominal and for reference only. They are not guaranteed maximum or minimum limits, nor do they imply mean or median. | |
| Model Number | ZGK-120 |
| Performance Data | |
| Head configuration | Pressure parallel flow |
| Nominal voltage/frequency | 220V/50HZ |
| Max. Current | 2.3A |
| Max. Power | 480W |
| Max. Flow | 120L/MIN |
| Max. Vacuum | -90Kpa |
| Speed at rated load | 1400RPM |
| Noise | <57dB |
| Max.Pressure restart | 0 PSI |
| Electrical Data | |
| Motor type[Capacitance] | P.S.C(12uF) |
| Motor insulation class | B |
| Thermal switch[Open temperature] | Thermally protected(145°C) |
| Line lead wire color,gauge | Brown(hot),blue(neutral),18AWG |
| Capacitor lead wire color,gauge | Black,black,18 AWG |
| General Data | |
| Operating ambient air temperature | 50° to 104°F(10° to 40°C) |
| Safety certification | ETL |
| Dimension(LXWXH) | 242X124X184 MM |
| Installation size | 203X88.9 MM |
| Net weight | 8.5KG |
| Application | Surgical aspirator,Cleaning, Disinfection etc. |
